artillery m1 pro usb otg upgrade

[brunoschoofs]

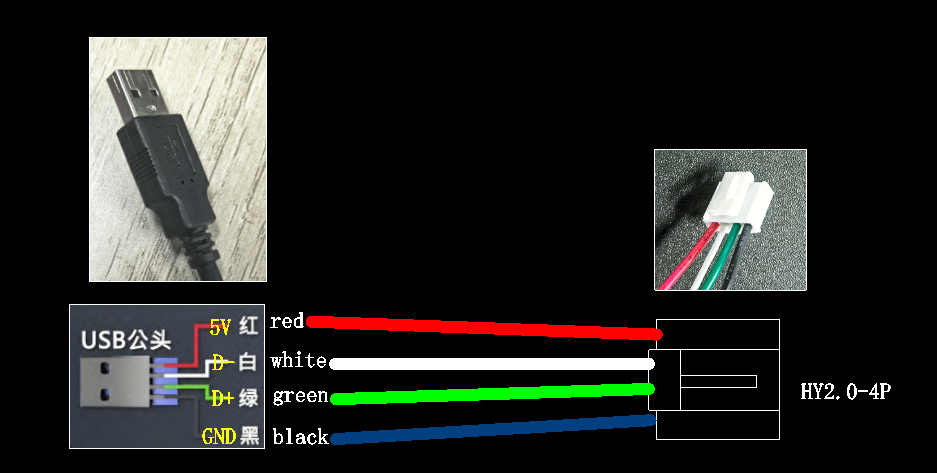

Make an upgrade line

[brunoschoofs]

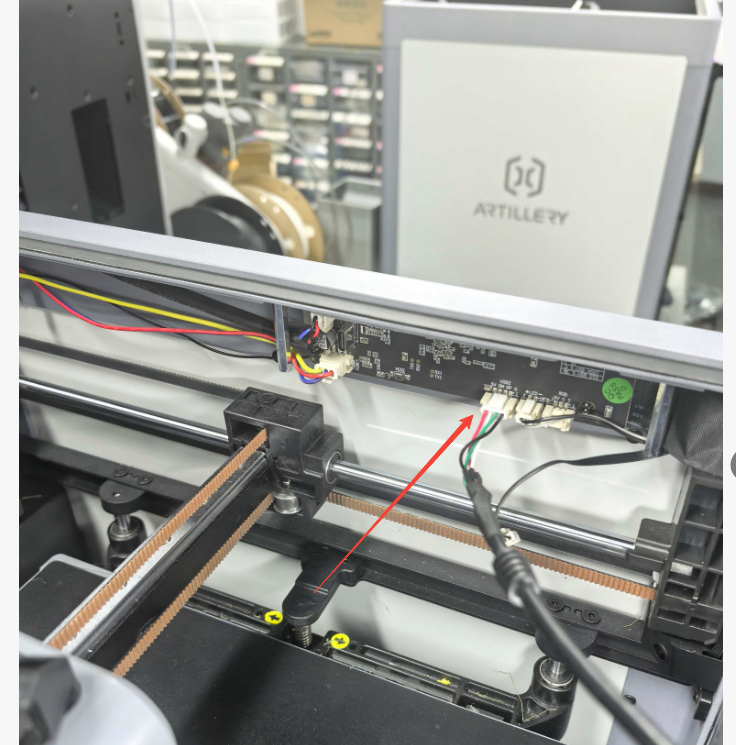

The printer is connected to the upgrade line

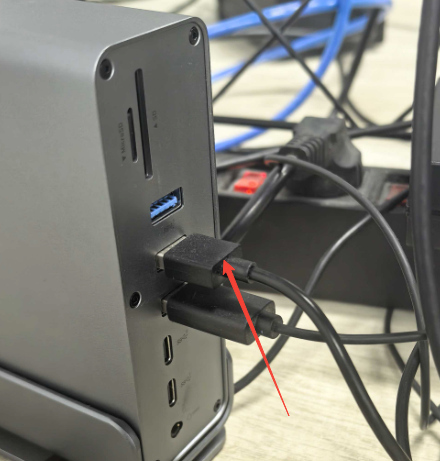

USBA plugs into the computer and HY2.0 plugs into the camera interface.
Open the cover on the right side of the machine and you can see the motherboard.

[brunoschoofs]

[brunoschoofs]

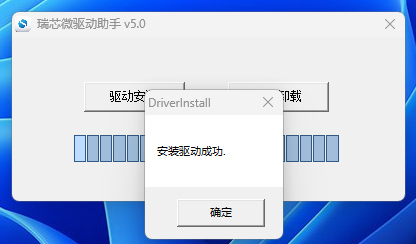

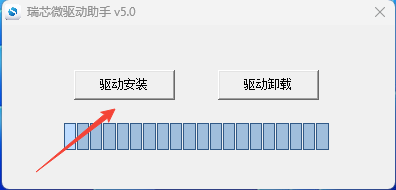

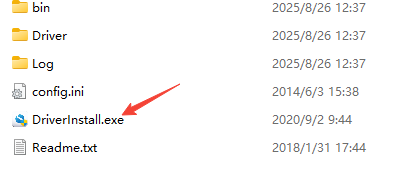

Install the DriverAssitant driver

DriverAssitant_v5.0.zip

(9.36 MiB) 95 keer gedownload


[brunoschoofs]


[brunoschoofs]

[brunoschoofs]

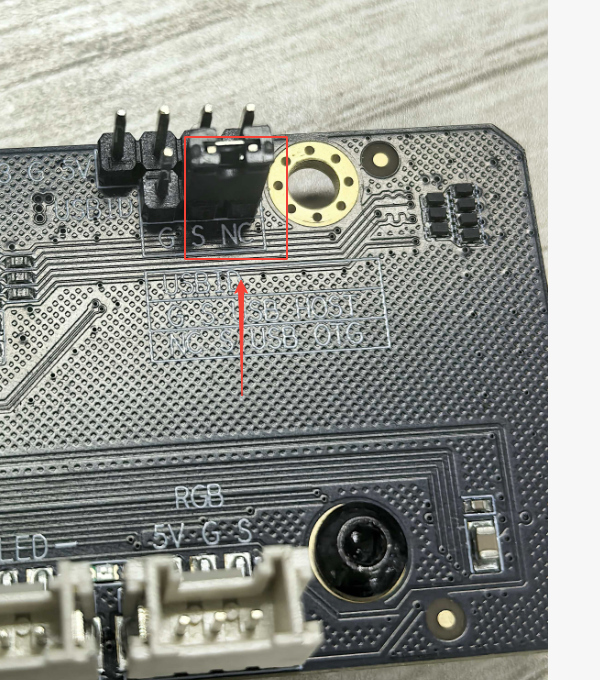

Connect the short connector cap of USBID to the S and NC pins.
Pictured：

[brunoschoofs]

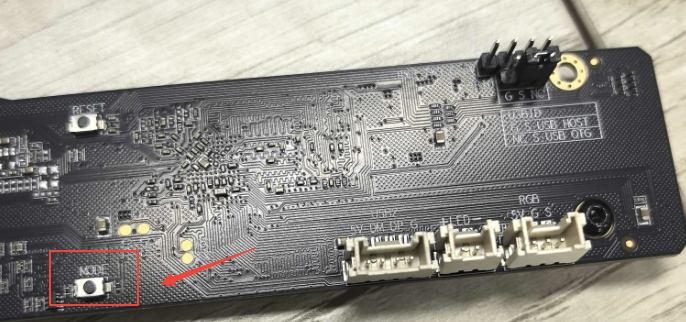

Press the MOOE key first, and then turn on the power.

[brunoschoofs]

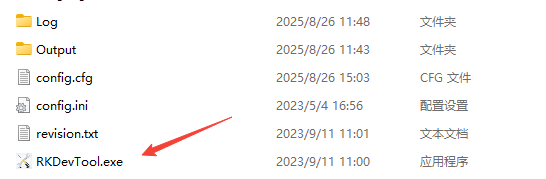

Open the software, RKDevTool.exe

RKDevTool_v3.19_for_window.zip

(2.39 MiB) 105 keer gedownload


[brunoschoofs]

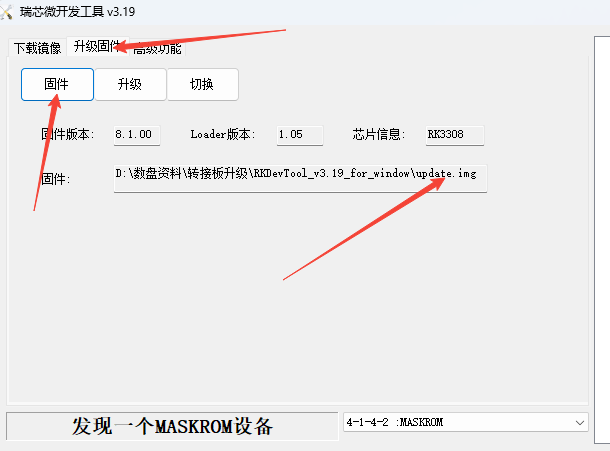

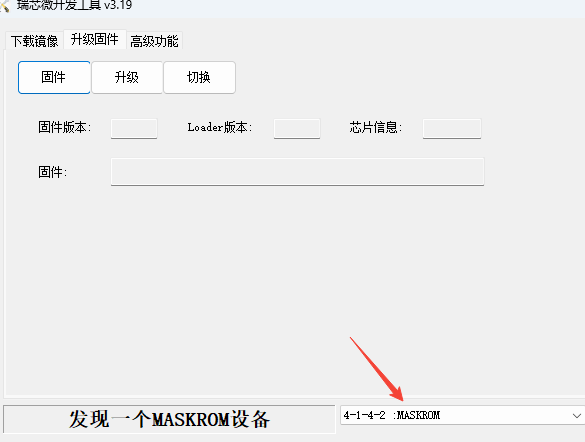

Seeing MASKROM means OTG recognition is successful.


[brunoschoofs]

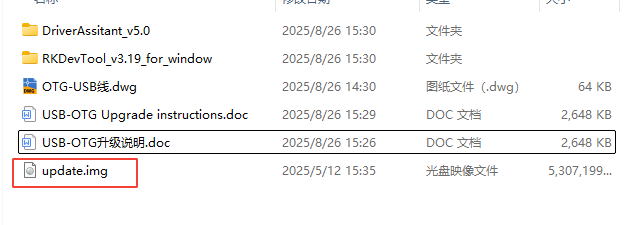

Load the mirror update.img


[brunoschoofs]

[brunoschoofs]

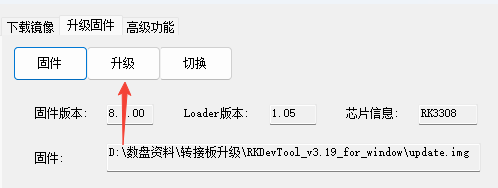

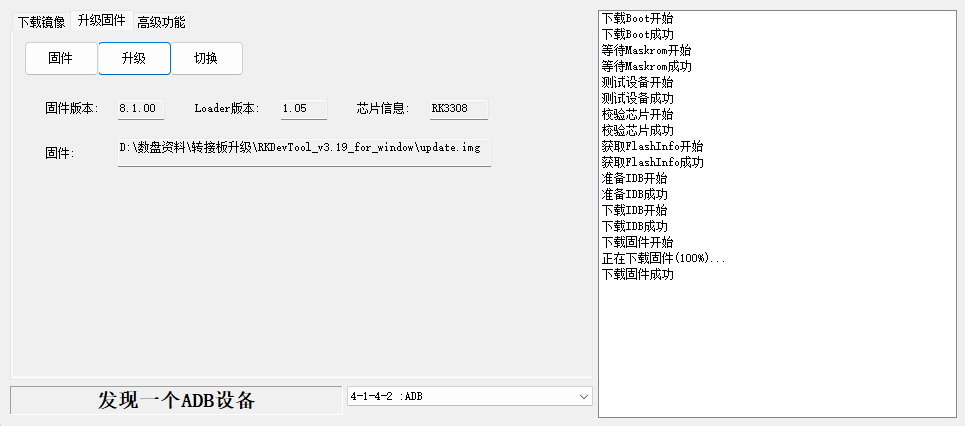

Click Upgrade


[brunoschoofs]


[brunoschoofs]

KLP_IMG_ARTILLERY_M1-SOC_20250902_Beta.zip

(2.09 GiB) 139 keer gedownload
